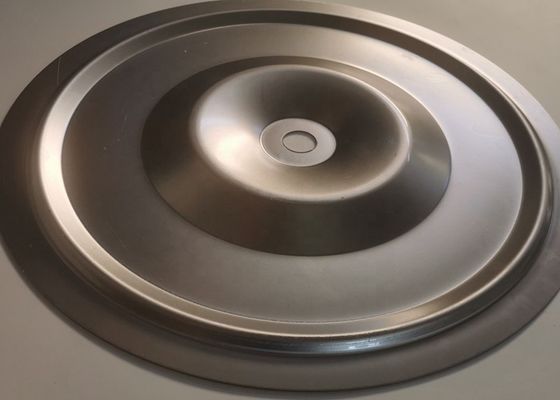

9009-54-86 Filter End Cap , Waterproof Air Filter Cover 0.30 mm Thickness

제품 상세 정보:

원래 장소:	핑 중국
브랜드 이름:	Chang Feng
인증:	ISO9001
모델 번호:	9009-54-86

결제 및 배송 조건:

최소 주문 수량:	10 / 세트
가격:	Negotiable
포장 세부 사항:	커버의 패키징 : 1.2 안에 있는 플라스틱 시트.PP 포대 외부 3.당신의 레퀴리에 따르면
배달 시간:	8-10 작업 일수
지불 조건:	L/C (신용장), 전신환
공급 능력:	5000은 / 세트 주당 필터 단부 캡에게 5000 세트 / 주를 할당했습니다

접촉

상세 제품 설명

상품 이름:	필터 단부 캡	핵심 구성 요소:	태도, 펌프
브랜드 이름:	CHANGFENG	사이즈:	Customzised
원래 장소:	허베이, 중국	보증:	3개월
패킹 유형:	가방 또는 통	차원:	당신의 요구조건으로서
두께:	3.00 밀리미터에 또는 주문 제작되 0.30 밀리미터	외경:	1000 밀리미터에 또는 주문 제작되 20.00 밀리미터
하이 라이트:	9009-54-86 필터 엔드 캡 , 9009-54-86 방수 에어 필터 커버 , 0.30 Mm 필터 엔드 캡

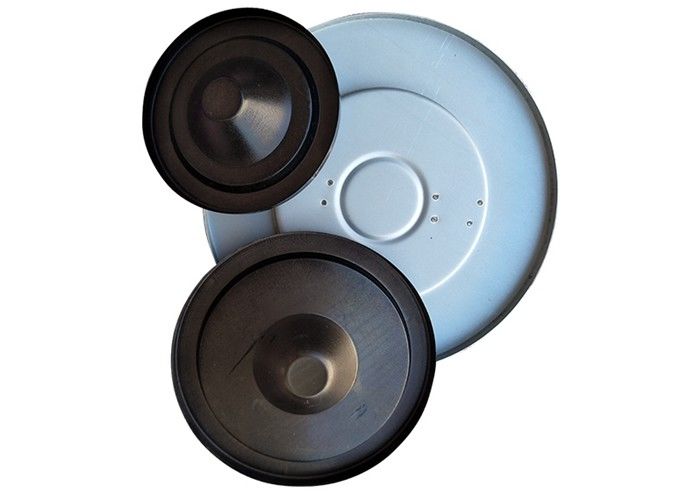

Round Metal Filter Material With Hole End Cap Filter End Caps

1. Product Description

Filter end cap is mainly used to seal both ends of the filter material and support the filter material to effectively improve the bearing capacity of the filter material. ChangFeng has been specialized in the metal filter end caps for decades with a wide range of end caps for the cartridge filter. We are able to advice customers on the best material proper thickness opt for.

2. Specifications

Open Round End Cap with Tri-Bolt Holes
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.54	13.716
Outer height	0.5	12.7
Inner rim diameter	6.75	171.45
Open Round End Cap with Outer Lip
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner diameter	0.625	15.875
Outer height	0.368	9.3472
Lip	0.375	9.525
Open Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.5	12.7
Outer Height	0.5	12.7
Closed Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
outer height	0.5	12.7
Closed Round End Cap with Bolt Hole
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
Outer height	0.5	12.7
Bolt Hole	0.625	15.875
Open Round End Cap with Flange
	Inches	Millimeters
Outer diameter	5.75	146.05
Inner diameter	2.5	63.5
Inner height	0.5	12.7
Outer height	0.278	7.0612
Closed Round End Cap
	Inches	Millimeters
Outer diameter	5.25	133.35
Inner diameter	2.5	63.5
Inner height	0.875	22.225
Outer height	0.172	4.3688

3. Product advantage

25 years' experience in producing filter end caps.
2. Accurate size according to customer requirements
3. Ensure the filters have a longer life with excellent heat and chemical resistance.
4. Effectively improve the capacity of the filter material.
5. Various exist mold to save your cost.
6. Qualified raw materials with certifications to make the filter caps.

4.Service

we can provide a free sample with our catalog. But the courier charge will on your side. We'll send back the courier charge if you make an order.

4. Characteristics

Materials: galvanized steel, stainless steel, fingerprint proof, copper / brass, etc
Thickness 0.30 mm to 3.00 mm
Outer diameter 20.00 mm to 1000 mm
Type on / off, with / without holes, customized
Delivery time according to customer requirements
Packaging plastic bag / piece or customized
It is used in dust catcher, air filter, fuel filter, oil filter, air compressor, water filter, activated carbon filter, etc.
Provide OEM
Quality control ISO certification
After sales service, product testing report, online tracking.
