1. Product introduction



Two-component polyurethane adhesive for machine

component proportion ratio is 100:25



2. Parameter table





3. Product characteristics

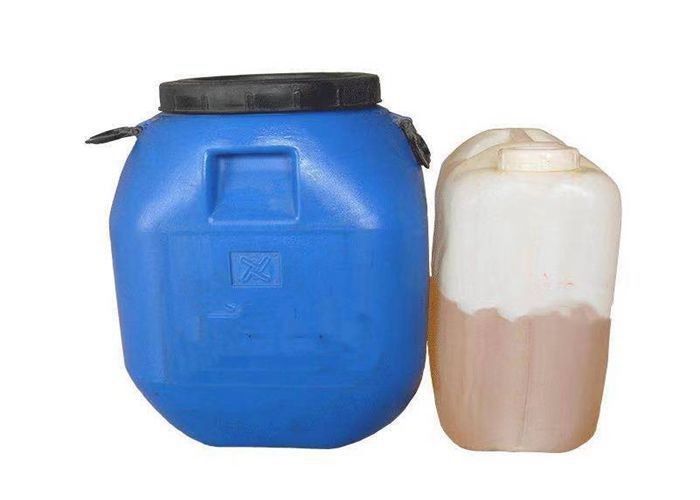

Material-A:Small barrel :25KGBig barrel :50KG

orange-red viscous liquid (color based on your request to configure)



4. Technology



1.The material must be full rocked after each to the plastic injection machine plastic injection so that the A material mixing evenly.

1.Every time the plastic injection machine plastic injection A material must be full before the shaking in order to the material until

2.AB material proportioning ratio of A:B=100:25 or 4:1.28°C,you can start operation

3.Material temperature controlled 24°C-28°C appropriate then you can start operation.



5. Product principle



1.The material must be full rocked after each to the plastic injection machine plastic injection so that the A material mixing evenly.

1.Everytime the plastic injection machine plastic injection A material must be full before the shaking in order to the material until

2.AB material proportioning ratio of A:B=100:25 or 4:1.28°C,you can start operation

3.Material temperature controlled 24°C-28°C appropriate then you can start operation.

4. Must be clean before using the mould release agent (Note:

The new plastic mould can be wiped free)

5 .If A and B is not reaction please measuring A and B ratio.

6. A and B must be sealed to .To avoid the air and water vapor reaction, as a result affecting the effect of colloidal



6. Product use



Because PU rubber has very good comprehensive properties, its application fields are also very wide, almost covering all aspects of industry, agriculture, medical treatment, national defense, etc.; in mining, metallurgy and other aspects, such as: sieve plates, shakers, etc. Mechanical applications such as: seals, plastic bags, rubber rollers, etc.; applications in the construction industry, such as waterproof materials, paving materials, potting materials, etc

7. Product advantage



1. Material-A should stirred evenly with plastic hand electric drill, material-B can shake, before used.

2. Open the electrocaloric plate temperature to 40-50 degrees, in winter material-A and material-B with a small container to preheat.

3. Wipe the mould with release agent

4. Each 1kg A add 3-6g water, also according to the local environment, such as the humidity in the air, workshop environment.

5. material-A and material-B are mixed at the mixture ratio of 100:40 ratio, then add 40% talcum powder(heavy calcium powder)(100:40:50±5), with 2800 rev / min motor to mix, mixing time determined by the amount of adhesive, per 100g of adhesive is approximately 7-10 seconds .

6. Pour the Mixed liquid into mould, then put the paper element and give a little pressure on it. 8-15 minutes later you can bring the mould down.



11. Method of operation



1.The material must be full rocked after each to the plastic injection machine plastic injection so that the A material mixing evenly.

1.Everytime the plastic injection machine plastic injection A material must be full before the shaking in order to the material until

2.AB material proportioning ratio of A:B=100:25 or 4:1.28°C,you can start operation

3.Material temperature controlled 24°C-28°C appropriate then you can start operation.

4. Must be clean before using the mould release agent (Note:

The new plastic mould can be wiped free)

5 .If A and B is not reaction please measuring A and B ratio.

6. A and B must be sealed to .To avoid the air and water vapor reaction, as a result affecting the effect of colloidal



12. Do’s and don’ts



1. The products are generally stored in a dry room, and pay attention to water, moisture and sun. Must cover the plug and cover, to avoid absorbing rubber moisture in the air, affect the results

2. Mould must be painted in front of the mould release agent,to be poured glue dry before.

3. A.B glue in ordinary temperature of 25 °C properly used, if the temperature is too high or too low will affect the use effect. You must use artificial methods of cooling or heating.
